Engineering Elegance: Invisible Deck Support

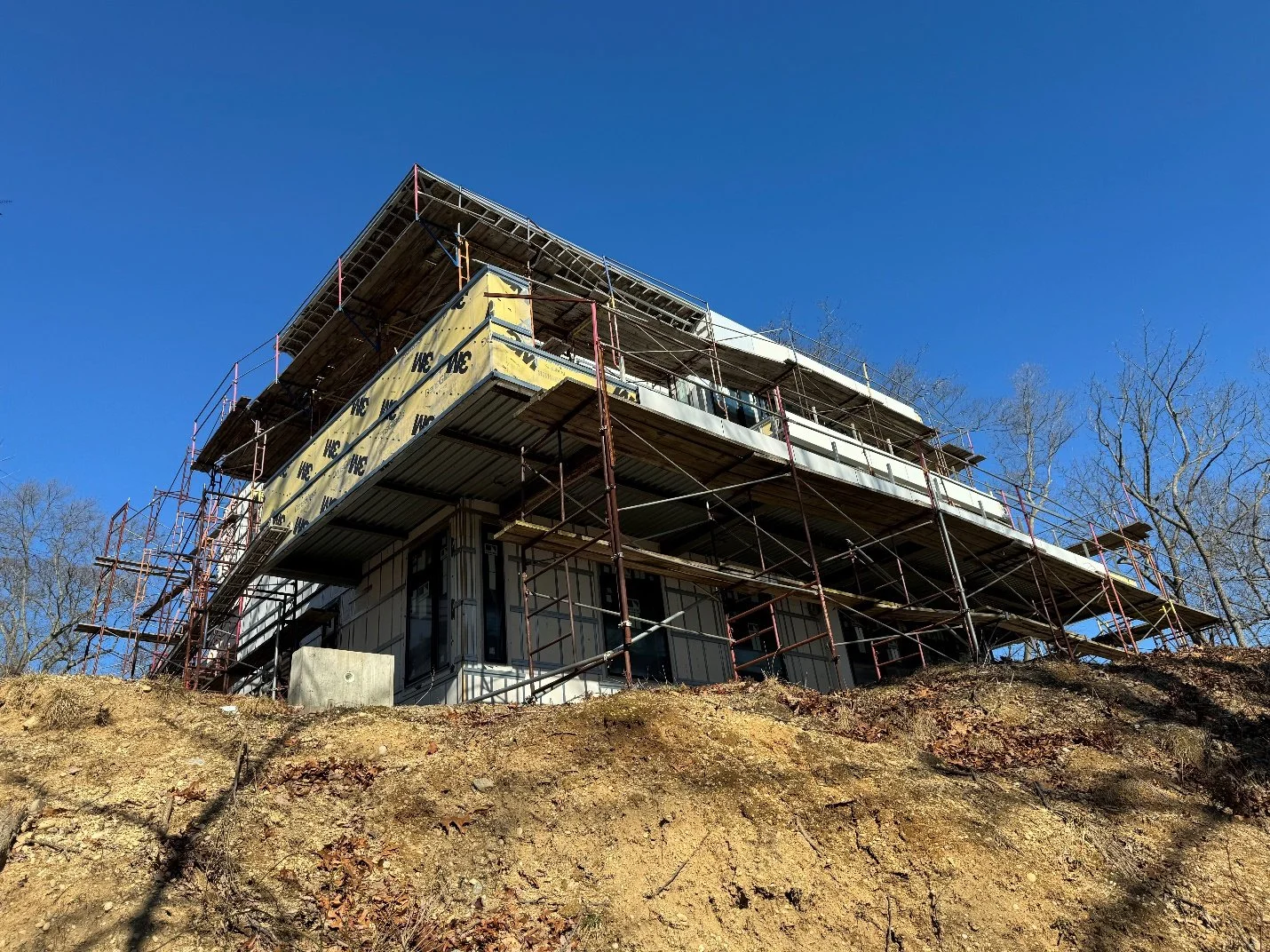

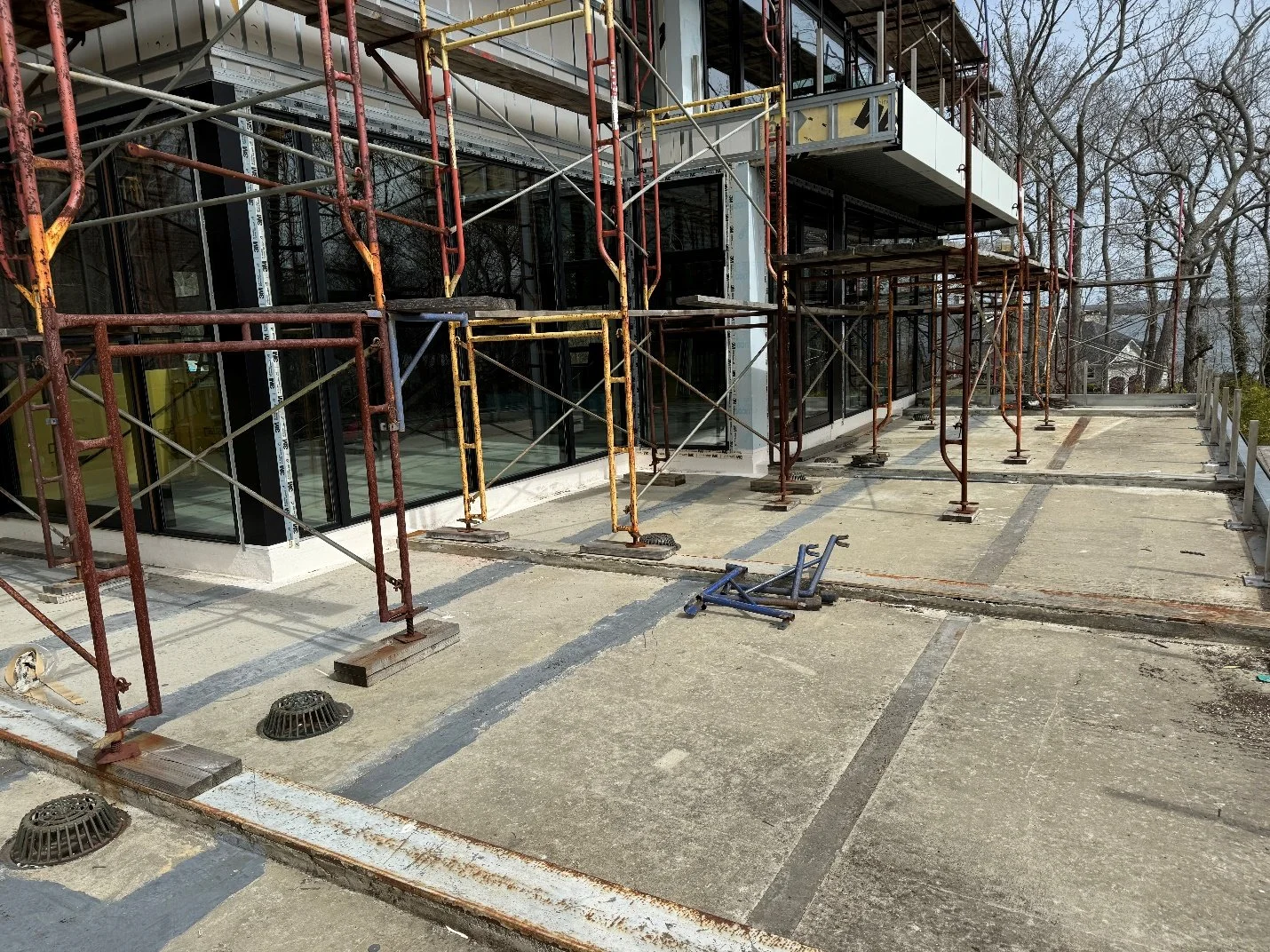

Lastly, a 20 foot deep outdoor deck with a 10 foot cantilever over the basement from the main floor above had the same floor depth restriction.  Here I used my last framing solution – upending the main beams flush into the concrete deck surface not visible below the finished floors inside or out.

My thanks to Tom Reilly, P.E. structural engineering and Andrew Braum, P.E. mechanical engineering
